33200 Series

  • Object
  • 2D drawing
33200 Series
  • 33200 Series
  • 33200 Series
Download
Contact Us
Share to

Download Catalog

Tapered roller bearings have tapered inner and outer raceways and rollers to handle simultaneous radial and thrust loads. Their axial load carrying capacity is directly related to the contact angle of the rollers and raceway shaft.

They are available in single-row, double-row, and four-row designs. The individual parts of tapered roller bearings are commonly sold separately as cups and cones. Cones contain the roller assembly and inner ring while cups include the outer ring. Full assembly units contain both the cup and cone. As separable bearings, different designs and sizes are available to accommodate a variety of applications.


>>
<<

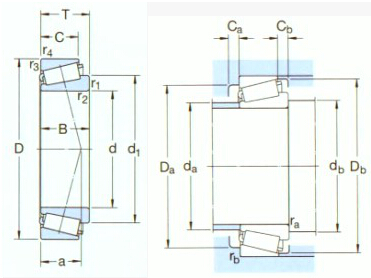

SelectInquiryDesignationPrincipal dimensions（mm）Basic load ratings（KN） PuSpeed ratings（rpm） Weight(Kg)ISO335 Dimensions （mm） Abutment and fillet dimensions （mm） Value
d1DBdyc(Cr)stc(Cor)Speed RatingsLimiting SpeedDimensions (ABMA)dd1～BCr1,2(min)r3,4(min)ada(max)db(min)Da(min)Da(max)Db(min)Ca(min)Cb(min)ra(max)rb(max)eYYo
33205/Q 25 52 22 54 56 6 10000 13000 0.23 2DE 25 38.6 22 18 1 1 14 30 31 43 46 49 4 4 1 1 0.35 1.7 0.9
33206/Q 30 62 25 75 76.5 8.5 8500 11000 0.37 2DE 30 45.8 25 19.5 1 1 16 36 36 53 56 59 5 5.5 1 1 0.35 1.7 0.9
33208/QCL7C 40 80 32 120 132 15 6300 8500 0.77 2DE 40 59.7 32 25 1.5 1.5 21 47 47 67 73 76 5 7 1.5 1.5 0.35 1.7 0.9
33209/Q 45 85 32 108 143 16.3 5300 7500 0.82 3DE 45 65.2 32 25 1.5 1.5 22 52 52 72 78 81 5 7 1.5 1.5 0.4 1.5 0.8
33210/Q 50 90 32 114 160 18.3 5000 7000 0.90 3DE 50 70.7 32 24.5 1.5 1.5 23 57 57 77 83 87 5 7.5 1.5 1.5 0.4 1.5 0.8
33211/Q 55 100 35 138 190 21.6 4500 6300 1.20 3DE 55 77.6 35 27 2 1.5 25 63 64 85 93 96 6 8 2 1.5 0.4 1.5 0.8
33212/Q 60 110 38 168 236 26.5 4000 6000 1.60 3EE 60 85.3 38 29 2 1.5 27 69 68 93 103 105 6 9 2 1.5 0.4 1.5 0.8
33213/Q 65 120 41 194 270 30.5 3800 5300 2.05 3EE 65 92.1 41 32 2 1.5 29 75 74 102 113 115 6 9 2 1.5 0.4 1.5 0.8
33213TN9/Q 65 120 41 194 270 30.5 3800 5300 2.05 3EE 65 92.1 41 32 2 1.5 29 75 74 102 113 115 6 9 2 1.5 0.4 1.5 0.8
33214/Q 70 125 41 201 285 32.5 3600 5000 2.10 3EE 70 97.2 41 32 2 1.5 30 79 78 107 115 120 6 9 2 1.5 0.4 1.5 0.8
33215/Q 75 130 41 209 300 34 3400 4800 2.25 3EE 75 102 41 31 2 1.5 32 84 84 111 122 125 6 10 2 1.5 0.43 1.4 0.8
33216/Q 80 140 46 251 375 41.5 3200 4500 2.90 3EE 80 110 46 35 2.5 2 35 89 90 119 130 135 7 11 2 2 0.43 1.4 0.8
33217/Q 85 150 49 286 430 48 3000 4300 3.70 3EE 85 117 49 37 2.5 2 37 96 95 128 140 144 7 12 2 2 0.43 1.4 0.8
33219 95 170 58 374 560 62 2600 3800 5.50 3FE 95 132 58 44 3 2.5 42 107 107 144 158 163 9 14 2.5 2 0.40 1.5 0.8
33220 100 180 63 429 655 71 2400 3600 6.95 3FE 100 139 63 48 3 2.5 43 112 112 151 168 172 10 15 2.5 2 0.4 1.5 0.8
30332J2 160 340 75 913 1180 114 1500 2000 29.0 2GB 160 233 68 58 5 4 61 201 180 290 323 310 9 17 4 3 0.35 1.7 0.9
>>
<<
