Tapered roller bearings have tapered inner and outer raceways and rollers to handle simultaneous radial and thrust loads. Their axial load carrying capacity is directly related to the contact angle of the rollers and raceway shaft.

They are available in single-row, double-row, and four-row designs. The individual parts of tapered roller bearings are commonly sold separately as cups and cones. Cones contain the roller assembly and inner ring while cups include the outer ring. Full assembly units contain both the cup and cone. As separable bearings, different designs and sizes are available to accommodate a variety of applications.


>>
<<

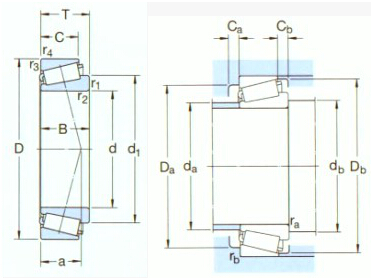

SelectInquiryDesignationPrincipal dimensions（mm）Basic load ratings（KN） PuSpeed ratings（rpm） Weight(Kg)ISO335 Dimensions （mm） Abutment and fillet dimensions （mm） Value
d1DBdyc(Cr)stc(Cor)Speed RatingsLimiting SpeedDimensions (ABMA)dd1～BCr1,2(min)r3,4(min)ada(max)db(min)Da(min)Da(max)Db(min)Ca(min)Cb(min)ra(max)rb(max)eYYo
32004X/Q 20 42 15 28 27 2.7 13000 16000 0.097 3CC 20 31.1 15 12 0.6 0.6 10 25 25 36 37 39 2 3 0.6 0.6 0.37 1.6 0.9
320/22X 22 44 15 25.1 29 2.85 11000 15000 0.10 3CC 22 33.3 15 11.5 0.6 0.6 11 27 27 38 39 41 3 3.5 0.6 0.6 0.40 1.5 0.8
32005X/Q 25 47 15 31 32.5 3.25 12000 14000 0.11 4CC 25 36.5 15 11.5 0.6 0.6 11 30 30 40 42 44 3 3.5 0.6 0.6 0.43 1.4 0.8
320/28X/Q 28 52 16 36.5 38 4 10000 13000 0.15 4CC 28 40.3 16 12 1 1 12 34 34 45 46 49 3 4 1 1 0.43 1.4 0.8
32006X/Q 30 55 17 40.5 44 4.55 10000 12000 0.17 4CC 30 43 17 13 1 1 13 35 36 48 49 52 3 4 1 1 0.43 1.4 0.8
320/32X/Q 32 58 17 42.5 46.5 4.8 9000 11000 0.19 4CC 32 45.6 17 13 1 1 14 38 38 50 52 55 3 4 1 1 0.46 1.3 0.7
32008/38X/Q 38 68 19 60 71 7.65 7500 10000 0.28 - 38 54.2 19 14.5 1 1 15 46 44 60 62 65 4 4.5 1 1 0.37 1.6 0.9
32008X/Q 40 68 19 60 71 7.65 7500 9500 0.27 3CD 40 54.2 19 14.5 1 1 15 46 46 60 62 65 4 4.5 1 1 0.37 1.6 0.9
32008XTN9/Q 40 68 19 60 71 7.65 7500 9500 0.27 3CD 40 54.2 19 14.5 1 1 15 46 46 60 62 65 4 4.5 1 1 0.37 1.6 0.9
33209/Q 45 85 32 108 143 16.3 5300 7500 0.82 3DE 45 65.2 32 25 1.5 1.5 22 52 52 72 78 81 5 7 1.5 1.5 0.4 1.5 0.8
32010X/Q 50 80 20 69.5 88 9.65 6300 8000 0.37 3CC 50 65.6 20 15.5 1 1 18 57 56 72 74 77 4 4.5 1 1 0.43 1.4 0.8
32010X/QCL7CVB026 50 80 20 69.5 88 9.65 6300 8000 0.37 3CC 50 65.6 20 15.5 3 1 18 57 62 72 74 77 4 4.5 2.5 1 0.43 1.4 0.8
32012X/QCL7C 60 95 23 95 122 13.4 5300 6700 0.59 4CC 60 77.8 23 17.5 1.5 1.5 21 67 67 85 88 91 4 5 1.5 1.5 0.43 1.4 0.8
32014X/Q 70 110 25 116 153 17.3 4500 5600 0.84 4CC 70 89.8 25 19 1.5 1.5 23 78 77 98 103 105 5 6 1.5 1.5 0.43 1.4 0.8
32015X/Q 75 115 25 122 163 18.6 4300 5300 0.90 4CC 75 95.1 25 19 1.5 1.5 25 83 82 103 108 110 5 6 1.5 1.5 0.46 1.3 0.7
32016X/Q 80 125 29 138 216 24.5 3600 5000 1.30 3CC 80 103 29 22 1.5 1.5 27 90 87 112 117 120 6 7 1.5 1.5 0.43 1.4 0.8
32018X/Q 90 140 32 168 270 31 3200 4300 1.75 3CC 90 115 32 24 2 1.5 30 100 98 125 132 134 6 8 2 1.5 0.43 1.4 0.8
32019X/Q 95 145 32 168 270 30.5 3200 4300 1.80 4CC 95 120 32 24 2 1.5 31 105 104 130 138 139 6 8 2 1.5 0.44 1.35 0.8
32021X/Q 105 160 35 201 335 37.5 2800 3800 2.40 4DC 105 132 35 26 2.5 2 34 116 116 143 150 154 6 9 2 2 0.44 1.35 0.8
32022X/Q 110 170 38 233 390 42.5 2600 3600 3.05 4DC 110 140 38 29 2.5 2 36 123 121 152 160 163 7 9 2 2 0.43 1.4 0.8
