Tapered roller bearings have tapered inner and outer raceways and rollers to handle simultaneous radial and thrust loads. Their axial load carrying capacity is directly related to the contact angle of the rollers and raceway shaft.

They are available in single-row, double-row, and four-row designs. The individual parts of tapered roller bearings are commonly sold separately as cups and cones. Cones contain the roller assembly and inner ring while cups include the outer ring. Full assembly units contain both the cup and cone. As separable bearings, different designs and sizes are available to accommodate a variety of applications.


>>
<<

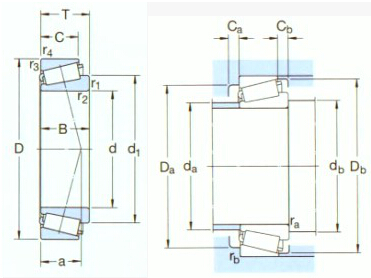

SelectInquiryDesignationPrincipal dimensions（mm）Basic load ratings（KN） PuSpeed ratings（rpm） Weight(Kg)ISO335 Dimensions （mm） Abutment and fillet dimensions （mm） Value
d1DBdyc(Cr)stc(Cor)Speed RatingsLimiting SpeedDimensions (ABMA)dd1～BCr1,2(min)r3,4(min)ada(max)db(min)Da(min)Da(max)Db(min)Ca(min)Cb(min)ra(max)rb(max)eYYo
32303J2/Q 17 47 20.25 40 33.5 3.65 12000 16000 0.17 2FD 17 30.7 19 16 1 1 12 24 23 39 41 43 3 4 1 1 0.28 2.1 1.1
32304J2/Q 20 52 22.25 51 45.5 5 12000 14000 0.23 2FD 20 34.5 21 18 1.5 1.5 14 27 27 43 45 47 3 4 1.5 1.5 0.3 2 1.1
32305J2 25 62 25.25 60.5 63 7.1 8000 12000 0.36 2FD 25 41.7 24 20 1.5 1.5 15 33 32 52 55 57 3 5 1.5 1.5 0.3 2 1.1
32306J2/Q 30 72 28.75 88 85 9.65 7500 10000 0.55 2FD 30 48.7 27 23 1.5 1.5 18 39 37 59 65 66 3 5.5 1.5 1.5 0.31 1.9 1.1
32307J2/Q 35 80 32.75 95.2 106 12.2 6700 9000 0.73 2FE 35 54.8 31 25 2 1.5 20 44 44 66 71 74 4 7.5 2 1.5 0.31 1.9 1.1
32307BJ2/Q 35 80 32.75 93.5 114 13.2 6300 8500 0.80 5FE 35 59.3 31 25 2 1.5 24 42 44 61 71 76 4 7.5 2 1.5 0.54 1.1 0.6
32307/37BJ2/Q 37 80 32.75 93.5 114 13.2 6300 8500 0.85 - 37 54.8 31 25 2 1.5 20 44 44 66 71 74 4 7.5 2 1.5 0.54 1.1 0.6
32308J2/Q 40 90 35.25 117 140 16 5300 8000 1.00 2FD 40 62.9 33 27 2 1.5 23 51 49 73 81 82 3 8 2 1.5 0.35 1.7 0.9
32309J2/Q 45 100 38.25 140 170 20.4 4800 7000 1.35 2FD 45 70.4 36 30 2 1.5 25 57 53 82 91 93 4 8 2 1.5 0.35 1.7 0.9
32309BJ2/QCL7C 45 100 38.25 156 176 20 5000 6700 1.45 5FD 45 74.8 36 30 2 1.5 30 55 53 76 91 94 5 8 2 1.5 0.54 1.1 0.6
32310J2/Q 50 110 42.25 172 212 24 4300 6300 1.80 2FD 50 77.7 40 33 2.5 2 27 63 60 90 100 102 5 9 2 2 0.35 1.7 0.9
32310TN9 50 110 42.25 172 212 24 4300 6300 1.80 2FD 50 77.7 40 33 2.5 2 27 63 60 90 100 102 5 9 2 2 0.35 1.7 0.9
32310BJ2/QCL7C 50 110 42.25 183 216 24.5 4500 6000 1.85 5FD 50 82.9 40 33 2.5 2 34 62 60 83 100 103 5 9 2 2 0.54 1.1 0.6
32311J2 55 120 45.5 198 250 28.5 4000 5600 2.30 2FD 55 84.6 43 35 2.5 2 29 68 65 99 112 111 5 10.5 2 2 0.35 1.7 0.9
32311BJ2/QCL7C 55 120 45.5 216 260 30 4300 5600 2.50 5FD 55 90.5 43 35 2.5 2 36 67 65 91 112 112 5 10.5 2 2 0.54 1.1 0.6
32312J2/Q 60 130 48.5 229 290 34 3600 5300 2.85 2FD 60 91.7 46 37 3 2.5 31 74 72 107 118 120 6 11.5 2.5 2 0.35 1.7 0.9
32312BJ2/QCL7C 60 130 48.5 255 305 35.5 3800 5000 2.80 5FD 60 98.1 46 37 3 2.5 38 73 72 99 118 122 6 11.5 2.5 2 0.54 1.1 0.6
32313J2/Q 65 140 51 264 335 40 3400 4800 3.45 2GD 65 99.2 48 39 3 2.5 33 80 77 117 128 130 6 12 2.5 2 0.35 1.7 0.9
32313BJ2/QU4CL7CVQ267 65 140 51 285 345 40.5 3600 4800 3.35 5GD 65 105 48 39 3 2.5 41 79 77 107 128 131 6 12 2.5 2 0.54 1.1 0.6
32314J2/Q 70 150 54 297 380 45 3200 4500 4.30 2GD 70 106 51 42 3 2.5 36 86 82 125 138 140 6 12 2.5 2 0.35 1.7 0.9
