32200 Series

  • Object

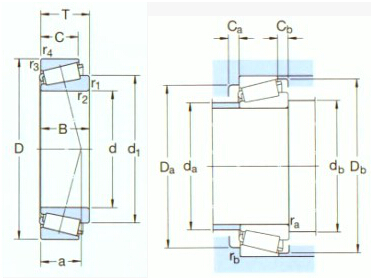

  • 2D drawing
32200 Series
  • 32200 Series
  • 32200 Series
Download
Contact Us
Share to

Download Catalog

Tapered roller bearings have tapered inner and outer raceways and rollers to handle simultaneous radial and thrust loads. Their axial load carrying capacity is directly related to the contact angle of the rollers and raceway shaft.

They are available in single-row, double-row, and four-row designs. The individual parts of tapered roller bearings are commonly sold separately as cups and cones. Cones contain the roller assembly and inner ring while cups include the outer ring. Full assembly units contain both the cup and cone. As separable bearings, different designs and sizes are available to accommodate a variety of applications.


>>
<<
SelectInquiryDesignationPrincipal dimensions（mm）Basic load ratings（KN） PuSpeed ratings（rpm） Weight(Kg)ISO335 Dimensions （mm） Abutment and fillet dimensions （mm） Value
d1DBdyc(Cr)stc(Cor)Speed RatingsLimiting SpeedDimensions (ABMA)dd1～BCr1,2(min)r3,4(min)ada(max)db(min)Da(min)Da(max)Db(min)Ca(min)Cb(min)ra(max)rb(max)eYYo
32205BJ2/Q 25 52 19.25 41.5 44 4.65 10000 13000 0.19 5CD 25 40.2 18 15 1 1 16 30 31 41 46 50 3 4 1 1 0.57 1.05 0.6
322/28BJ2/Q 28 58 20.25 48 50 5.5 9500 12000 0.25 5DD 28 43.9 19 16 1 1 17 33 34 46 52 55 3 4 1 1 0.57 1.05 0.6
32206J2/Q 30 62 21.25 58.5 57 6.3 9000 11000 0.28 3DC 30 45.2 20 17 1 1 15 37 36 52 56 58 3 4 1 1 0.37 1.6 0.9
32206BJ2/QCL7CVA606 30 62 21.25 56 58.5 6.55 9000 11000 0.30 5DC 30 47.3 20 17 1 1 18 36 36 50 56 60 3 4 1 1 0.57 1.05 0.6
32207J2/Q 35 72 24.25 76.5 78 8.5 8000 9500 0.43 3DC 35 52.4 23 19 1.5 1.5 17 43 42 61 65 67 3 5 1.5 1.5 0.37 1.6 0.9
32208J2/Q 40 80 24.75 85 86.5 9.8 7000 8500 0.53 3DC 40 58.4 23 19 1.5 1.5 19 49 47 68 73 75 3 5.5 1.5 1.5 0.37 1.6 0.9
32208BJ2/Q 40 80 24.75 86.5 93 10.8 6700 8500 0.52 5DC 40 60.9 23 19 1.5 1.5 22 49 47 65 73 76 4 5.5 1.5 1.5 0.54 1.1 0.6
32209J2/Q 45 85 24.75 91.5 98 11 6300 8000 0.58 3DC 45 64 23 19 1.5 1.5 20 54 52 73 78 80 3 5.5 1.5 1.5 0.4 1.5 0.8
32210/45BJ2/QVB022 45 90 24.75 95 104 12.2 6000 8000 0.65 - 45 68.5 23 19 1.5 0.3 21 58 52 78 87 85 3 5.5 1.5 0.3 0.6 1 0.6
32210J2/Q 50 90 24.75 95 100 11.4 6000 7500 0.61 3DC 50 68.5 23 19 1.5 1.5 21 58 57 78 83 85 3 5.5 1.5 1.5 0.43 1.4 0.8
32211J2/Q 55 100 26.75 106 129 15 5000 6700 0.83 3DC 55 75.2 25 21 2 1.5 22 64 64 87 93 95 4 5.5 2 1.5 0.4 1.5 0.8
32212J2/Q 60 110 29.75 146 160 18.6 5000 6000 1.15 3EC 60 81.9 28 24 2 1.5 24 69 68 95 103 104 4 5.5 2 1.5 0.4 1.5 0.8
32212BJ2/Q 60 110 29.75 140 156 19 4800 6000 1.15 - 60 85.7 28 21 2 1.5 28 69 98 93 103 105 5 8.5 2 1.5 0.57 1.05 0.6
32213J2/Q 65 120 32.75 151 193 22.8 4000 5600 1.50 3EC 65 90.3 31 27 2 1.5 27 76 74 104 113 115 4 5.5 2 1.5 0.4 1.5 0.8
32214J2/Q 70 125 33.25 157 208 24.5 3800 5300 1.60 3EC 70 95 31 27 2 1.5 28 80 78 108 115 119 4 6 2 1.5 0.43 1.4 0.8
32215J2/Q 75 130 33.25 161 212 24.5 3600 5000 1.70 4DC 75 100 31 27 2 1.5 29 85 84 114 122 125 4 6 2 1.5 0.43 1.4 0.8
32216J2/Q 80 140 35.25 187 245 28.5 3400 4500 2.05 3EC 80 106 33 28 2.5 2 30 91 90 122 130 134 5 7 2 2 0.43 1.4 0.8
32217J2/Q 85 150 38.5 212 285 33.5 3200 4300 2.60 3EC 85 113 36 30 2.5 2 33 97 95 130 140 142 5 8.5 2 2 0.43 1.4 0.8
32218J2/Q 90 160 42.5 251 340 38 3000 4000 3.35 3FC 90 121 40 34 2.5 2 36 102 101 138 150 152 5 8.5 2 2 0.43 1.4 0.8
32219J2 95 170 45.5 281 390 43 2800 3800 4.05 3FC 95 128 43 37 3 2.5 39 109 107 145 158 161 5 8.5 2.5 2 0.43 1.4 0.8
Previous12Next
>>
<<
