R Series
Special feature of this series
Ball bearings of this light series in Zoll/inch-dimensions still support moderate radial loads despite their low weight. In comparison to deep groove ball bearings of the RMS series they require a smaller installation space at the same inside diameter, only weigh approximately a third of them and allow higher speeds furthermore.
Seals
Plastic seals (RS/2RS) have the optimum sealing action with increased friction. Metal seals (Z/ZZ) are suitable for higher speeds, but they have a limited sealing action as they seal contactless. Open, seal-less bearings are suitable for extremely high speeds and - furthermore - they can be regreased more easily. However, they are more susceptible to soiling.
>>
<<

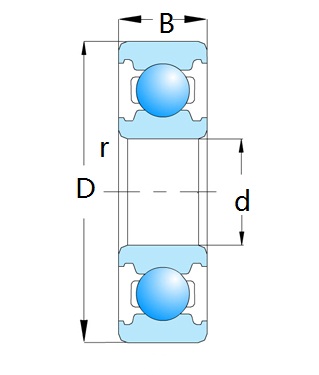

| Select | Inquiry | Bearing Designation | Dimension | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | d | D | D | B | B | rs min | rs min | Kg | |||
| in | mm | in | mm | in | mm | in | mm | ||||
| R10 | 5/8 | 15.875 | 1-3/8 | 34.925 | 0.2181 | 5.54 | 0.031 | 0.8 | 37 | ||
| R12 | 3/4 | 19.050 | 1-5/8 | 41.275 | 0.3126 | 7.94 | 0.031 | 0.8 | 47 | ||
| R14 | 7/8 | 22.225 | 1-7/8 | 47.625 | 0.3752 | 9.53 | 0.031 | 0.8 | 71 | ||
| R16 | 1 | 25.400 | 2 | 50.8 | 0.3752 | 9.53 | 0.031 | 0.8 | 85 | ||
| R18 | 1-1/8 | 28.575 | 2-1/8 | 53.975 | 0.3752 | 9.53 | 0.031 | 0.8 | 90 | ||
| R20 | 1-1/4 | 31.750 | 2-1/4 | 57.15 | 0.3752 | 9.53 | 0.031 | 0.8 | 95 | ||
| R22 | 1-3/8 | 34.925 | 2-1/2 | 63.5 | 0.4374 | 11.11 | 0.031 | 0.8 | 106 | ||
| R24 | 1-1/2 | 38.100 | 2-5/8 | 66.675 | 0.4374 | 11.11 | 0.031 | 0.8 | 141 | ||
| R6 | 3/8 | 9.525 | 7/8 | 22.225 | 0.2189 | 5.56 | 0.016 | 0.4 | 11 | ||
| R8 | 1/2 | 12.700 | 1-1/8 | 28.575 | 0.25 | 6.35 | 0.016 | 0.4 | 18 | ||
>>
<<
