UCFA Series

Advanced Search

Object

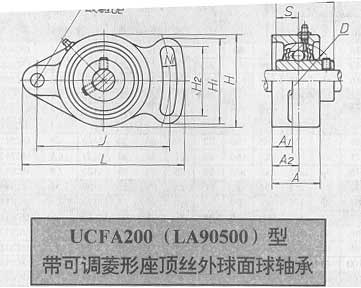

2D drawing

UCFA Series

Download

Contact Us

Share to

Download Catalog

>>

<<

Select	Inquiry	Bearing No.	Dimension													Weight	Matched Bearing No.	Matched Pillow Block No.	Bolt Size	Matched shaft d
Select	Inquiry	Bearing No.	D	B	S	L	J	H	H1	H2	A	A1	A2	N	N1	Kg	Matched Bearing No.	Matched Pillow Block No.	Bolt Size	Matched shaft d
		LA90500	40	27.4	11.5	102	78	60	54	40	25.5	12	15	10	10	0.7	90503	LA503	M8
		LA90504	47	31	12.7	102	78	60	54	40	25.5	12	15	10	10	0.6	90504	LA504	M8	20
		LA90505	52	34.1	14.3	125	98	68	65	51	27	14	16	12	13	0.8	90505	LA505	M10	25
		LA90506	62	38.1	15.9	144	117	80	72	58	31	14	18	12	13	1.2	90506	LA506	M10	30
		LA90507	72	42.9	17.5	161	130	90	82	66	34	16	19	15	15	1.5	90507	LA507	M12	35
		LA90508	80	49.2	19	175	144	100	87	71	36	16	21	15	15	1.8	90508	LA508	M12	40
		LA90509	85	49.2	19	181	148	108	90	72	38	18	22	15	15	2.2	90509	LA509	M12	45
		LA90510	90	51.6	19	190	157	115	94	76	40	18	22	15	15	2.6	90510	LA510	M12	50
		LA90511	100	55.6	22.2	219	184	130	104	86	43	20	25	16	17	3.6	90511	LA511	M14	55

>>

<<
