Double row ball slewing bearing (External gear type)
  • Double row ball slewing bearing (External gear type)
  • Double row ball slewing bearing (External gear type)
>>
<<

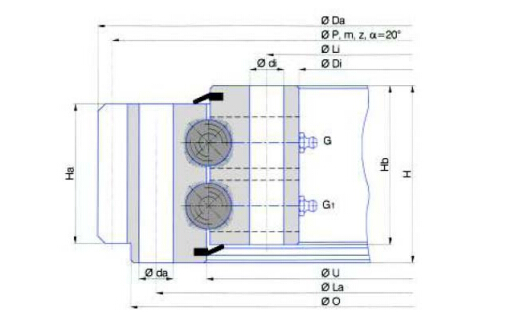

SelectInquiryDesignations Boundary Dimension (mm)Bolt Hole Diameter (mm)Weight
Da DiH LaLina3)ni3)mz(Kg)
E.504.2.25.00.D.6 504 300 95 16 17 16 17 8 61 65
E.608.2.25.10.D.6 608 382 95 24 17 24 17 8 74 84
E.712.2.25.12.D.6 712 470 98 24 17 24 17 8 87 103
E.1079.2.20.12.D.3-V 1079 893 90 30 M16 30 18 8 131 140
E.1080.2.22.00.D.6 1080 893 92 30 17 30 17 8 133 150
E.1200.2.25.00.D.1 1200 976 98 36 19 36 19 8 148 210
>>
<<
