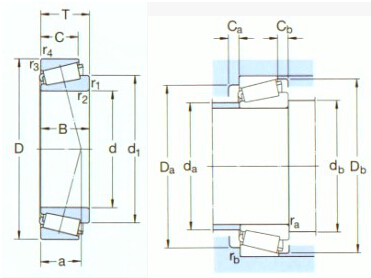

  • 2D drawing
33100 Series
  • 33100 Series
  • 33100 Series
Download
Contact Us
Share to

Download Catalog

Tapered roller bearings have tapered inner and outer raceways and rollers to handle simultaneous radial and thrust loads. Their axial load carrying capacity is directly related to the contact angle of the rollers and raceway shaft.

They are available in single-row, double-row, and four-row designs. The individual parts of tapered roller bearings are commonly sold separately as cups and cones. Cones contain the roller assembly and inner ring while cups include the outer ring. Full assembly units contain both the cup and cone. As separable bearings, different designs and sizes are available to accommodate a variety of applications.


>>
<<
SelectInquiryDesignationPrincipal dimensions（mm）Basic load ratings（KN） PuSpeed ratings（rpm） Weight(Kg)ISO335 Dimensions （mm） Abutment and fillet dimensions （mm） Value
d1DBdyc(Cr)stc(Cor)Speed RatingsLimiting SpeedDimensions (ABMA)dd1～BCr1,2(min)r3,4(min)ada(max)db(min)Da(min)Da(max)Db(min)Ca(min)Cb(min)ra(max)rb(max)eYYo
33108/Q 40 75 26 91.5 104 11.4 7000 9000 0.51 2CE 40 57.5 26 20.5 1.5 1.5 18 47 47 65 68 71 4 5.5 1.5 1.5 0.35 1.7 0.9
33109/Q 45 80 26 96.5 114 12.9 6700 8000 0.56 3CE 45 62.7 26 20.5 1.5 1.5 19 52 52 69 73 77 4 5.5 1.5 1.5 0.37 1.6 0.9
33110/Q 50 85 26 100 122 13.4 6000 7500 0.59 3CE 50 67.9 26 20 1.5 1.5 20 57 57 74 78 82 4 6 1.5 1.5 0.4 1.5 0.8
33111/Q 55 95 30 110 156 17.6 5000 6700 0.86 3CE 55 75.1 30 23 1.5 1.5 22 63 62 83 88 91 5 7 1.5 1.5 0.37 1.6 0.9
33112/Q 60 100 30 134 170 19.6 5300 6300 0.92 3CE 60 80.4 30 23 1.5 1.5 23 67 67 88 93 96 5 7 1.5 1.5 0.4 1.5 0.8
33113/Q 65 110 34 142 208 24 4300 5600 1.30 3DE 65 87.9 34 26.5 1.5 1.5 26 74 72 96 103 106 6 7.5 1.5 1.5 0.4 1.5 0.8
33114/Q 70 120 37 172 250 30 4000 5300 1.70 3DE 70 94.8 37 29 2 1.5 28 80 79 104 112 115 6 8 2 1.5 0.37 1.6 0.9
33115/Q 75 125 37 176 265 31.5 3800 5000 1.80 3DE 75 100 37 29 2 1.5 29 84 84 109 117 120 6 8 2 1.5 0.4 1.5 0.8
33116/Q 80 130 37 179 280 32.5 3600 4800 1.90 3DE 80 105 37 29 2 1.5 30 89 89 114 122 126 6 8 2 1.5 0.43 1.4 0.8
33116TN9/Q 80 130 37 179 280 32.5 3600 4800 1.90 3DE 80 105 37 29 2 1.5 30 89 89 114 122 126 6 8 2 1.5 0.43 1.4 0.8
33117/Q 85 140 41 220 340 38 3400 4500 2.45 3DE 85 112 41 32 2.5 2 32 95 95 122 130 135 7 9 2 2 0.4 1.5 0.8
33118/Q 90 150 45 251 390 43 3000 4300 3.10 3DE 90 120 45 35 2.5 2 35 101 101 130 140 144 7 10 2 2 0.4 1.5 0.8
33118TN9/Q 90 150 45 251 390 43 3000 4300 3.10 3DE 90 120 45 35 2.5 2 35 101 101 130 140 144 7 10 2 2 0.4 1.5 0.8
33122 110 180 56 369 630 67 2600 3400 5.55 3EE 110 146 56 43 2.5 2 44 121 121 155 170 174 9 13 2 2 0.43 1.4 0.8
>>
<<
