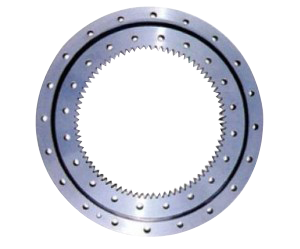

Double row ball slewing bearing (Internal gear type)
  • Double row ball slewing bearing (Internal gear type)
  • Double row ball slewing bearing (Internal gear type)
>>
<<

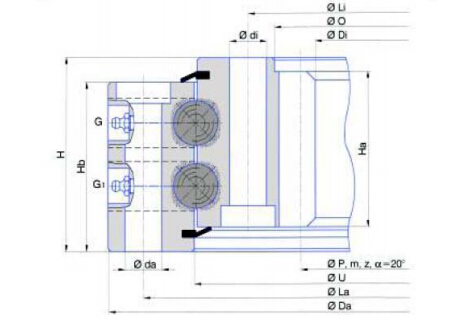

SelectInquiryDesignations Boundary Dimension (mm)Bolt Hole Diameter (mm)Weight
Da DiH LaLina3)ni3)mz(Kg)
I.973.2.22.00.D.6 973 786 97 36 17 36 17 8 100 141
I.1165.2.22.00.D.6 1165 962 97 36 17 36 17 10 98 187
I.1200.2.25.00.D.6 1200 963.5 110 36 21 36 21 10 98 230
I.1346.2.30.05.D.6 1345 1061.6 108 48 21 48 21 10 108 326
I.1750.2.30.20.D.6 1750 1418.4 120 48 25 48 25 12 120 564
>>
<<
