AGH..SA(CA) AGW..SA(CA)

  • Object
  • 2D drawing
AGH..SA(CA) AGW..SA(CA)
  • AGH..SA(CA) AGW..SA(CA)
  • AGH..SA(CA) AGW..SA(CA)
Download
Contact Us
Share to

Download Catalog

>>
<<

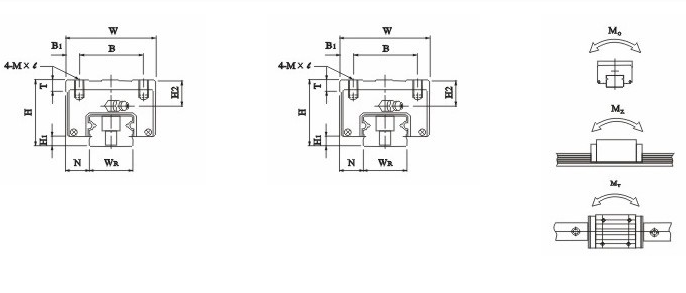

SelectInquiryTypeSize of the components (mm) Size of the blocks (mm) Size of the slide shaft (mm) The fhrde bolt sizes of the slide shaftBasio dynamic fcced loadBasio stratic fcced loadPemaisaive static moment(kgf-m) Weight
HH1NWBB1CL1LGM×ιTH2WRHRDhdPE(mm)C(kgf)Co(kgf)MOMXMYBlocks (kg)Slide shaft (kg/m)
LGH 15CA 28 4.5 95 34 26 4 26 39.6 60.6 5.3 M4*5 6 8.5 15 14 7.5 5.3 4.5 60 20 M4*16 1040 1680 13.5 11 11 0.21 1.47
LGH 20CA 30 5 12 44 32 6 36 52.7 77.3 12 M5*6 8 7.1 20 15 9.5 8.5 6 60 20 M5*16 1650 2670 28.1 22.8 22.8 0.37 2.08
LGH 20HA - - - - - - 50 67 91.6 - - - - - - - - - - - - 2100 3400 35.7 35.9 35.9 0.46 -
LGH 25CA 40 6.5 12.5 48 35 6.5 35 57.6 85.6 12 M6*8 8 11.2 23 20 11 9 7 60 20 M6*20 2410 3880 46.6 37.2 37.2 0.59 3.15
LGH 25HA - - - - - - 50 76.6 104.6 - - - - - - - - - - - - 3210 5180 62.2 63.6 63.6 0.78 -
LGH 30CA 45 7 16 60 40 10 40 72 104.4 12 M8*10 8 10.5 28 23 14 12 9 80 20 M8*25 3380 5460 79.3 61.2 61.2 1.04 4.41
LGH 30HA - - - - - - 60 93 125.4 - - - - - - - - - - - - 4400 7100 103 100.4 100.4 1.33 -
LGH 35CA 55 8 18 70 50 10 50 82 118.4 12 M8*12 10 15 34 25 14 12 9 80 20 M8*25 4180 6740 118.1 84.4 84.4 1.72 5.93
LGH 35HA - - - - - - 72 105.8 142.2 - - - - - - - - - - - - 5430 8770 153.5 138.4 138.4 2.24 -
LGH 45CA 70 10 20.5 86 60 13 60 99.6 139.2 12.9 M10*17 15 21 45 32 20 17 14 105 225 M12*35 6020 9710 223.5 141.3 141.3 3.16 10.01
LGH 45HA - - - - - - 80 133 172.6 - - - - - - - - - - - - 8430 13600 312.8 259.2 259.2 4.28 -
LGH 55CA 80 13 23.5 100 75 12.5 75 115.8 164.8 12.9 M12*18 17 22 53 40 23 20 16 120 30 M14*45 9740 13320 384.9 280.9 280.9 5.3 14.82
LGH 55HA - - - - - - 95 154.7 203.7 - - - - - - - - - - - - 11810 18510 489.8 442.7 442.7 6.4 -
LGH 65CA 90 19 31.5 126 76 2.5 70 138.6 197.6 12.9 M16*20 25 20 63 48 26 22 18 150 35 M16*50 14940 20990 738.8 579 579 7.3 21.26
LGH 65HA - - - - - - 120 187.6 246.6 - - - - - - - - - - - - 18390 27390 1007.5 1040.8 1040.8 9.3 -
LGW 15CA 24 45 16 47 38 4.5 30 39.6 60.6 53 M5 6 4.5 15 14 7.5 5.3 4.5 60 20 M4*16 1040 1680 13.5 11 11 0.3 1.47
LGW 20CA 30 5 21.5 63 53 5 40 52.7 77.3 12 M6 8 7.1 20 15 9.5 8.5 6 60 20 M5*16 1650 2670 28.1 22.8 22.8 0.46 2.08
LGW 20HA - - - - - - - 67 91.6 - - - - - - - - - - - - 2100 3400 35.7 35.9 35.9 0.58 -
LGW 25CA 36 6.5 23.5 70 57 6.5 45 57.6 85.6 12 M8 8 7.2 23 20 11 9 7 60 20 M6*20 2410 3880 46.6 37.2 37.2 0.64 3.15
LGW 25HA - - - - - - - 76.6 104.6 - - - - - - - - - - - - 3210 5180 62.2 63.6 63.6 0.86 -
