MGN..C MGW..C(H)

  • Object

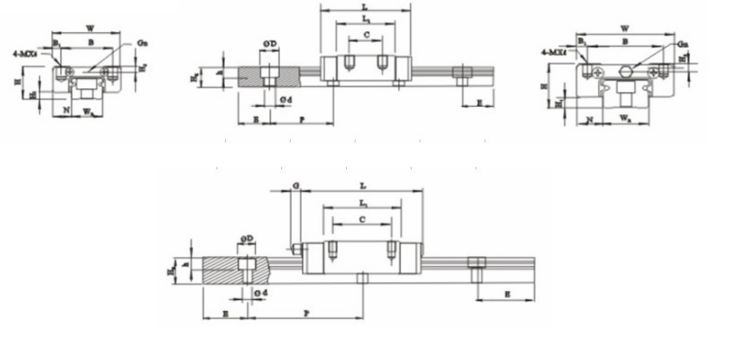

  • 2D drawing
MGN..C MGW..C(H)
  • MGN..C MGW..C(H)
  • MGN..C MGW..C(H)
Download
Contact Us
Share to

Download Catalog

>>
<<
SelectInquiryTypeSize of the components (mm) Size of the blocks (mm) Size of the slide shaft (mm) The fhrde bolt sizes of the slide shaftBasio dynamic fcced loadBasio stratic fcced loadPemaisaive static moment(kgf-m) Weight
HH1NWBB1CL1LGM×ιTH2WRHRDhdPE(mm)C(kgf)Co(kgf)MOMXMYBlocks (kg)Slide shaft (kg/m)
MGN 7C 8 1.5 5 17 12 2.5 8 13.5 22.5 - 0.8 M2*2.5 1.5 7 4.8 4.2 2.3 2.4 15 5 M2*6 100 127 0.48 0.29 0.29 10 22
MGN 7H - - - - - - 13 21.8 30.8 - - - - - - - - - - - - 140 200 0.78 0.49 0.49 15 -
MGN 9C 10 2 5.5 20 15 2.5 10 18.5 28.9 - 0.8 M3*3 1.8 9 6.5 6 3.5 3.5 20 7.5 M3*8 190 260 1.2 0.75 0.75 16 38
MGN 9H - - - - - - 16 29.9 39.9 - - - - - - - - - - - - 260 410 2 1.9 1.9 26 -
MGN 12C 13 3 7.5 27 20 3.5 15 21.7 34.7 - 0.8 M3*3.5 2.5 12 8 6 4.5 3.5 25 10 M3*8 290 400 2..6 1.4 1.4 34 65
MGN 12H - - - - - - 20 32.4 45.4 - - - - - - - - - - - - 380 600 3.9 3.7 3.7 54 -
MGN 15C 16 4 8.5 32 25 3.5 20 26.7 42.1 4.5 ØN35 M3*4 3 15 10 6 4.5 3.5 40 15 M3*10 470 570 4.6 2.2 2.2 59 106
MGN 15H - - - - - - 25 43.4 58.8 - - - - - - - - - - - - 650 930 7.5 5.9 5.9 92 -
MGW 7C 9 1.9 5.5 25 19 3 10 21 31.2 - 0.9 M3*3 1.85 14 5.2 6 3.2 3.5 30 10 M3*6 140 210 1.6 0.73 0.73 20 0.51
MGW 7H - - - - - - 19 30.8 41 - - - - - - - - - - - - 180 320 2.39 1.58 1.58 29 -
MGW 9C 12 2.9 6 30 21 4.5 12 27.5 39.3 - 1 M3*3 2.4 18 7 6 4.5 3.5 30 10 M3*8 280 420 4.09 1.93 1.93 40 0.91
MGW 9H - - - - 23 3.5 24 38.5 50.7 - - - - - - - - - - - - 350 600 5.56 3.47 3.47 57 -
MGW 12C 14 3.4 8 40 28 6 15 313 46.1 - 1 M3*3.6 2.8 24 8.5 8 4.5 4.5 40 15 M4*8 400 570 7.17 2.83 2.83 71 1.49
MGW 12H - - - - - - 28 45.6 60.4 - - - - - - - - - - - - 520 840 10.47 5.85 5.85 103 -
MGW 15C 16 3.4 9 60 45 7.5 20 38 54.8 5.2 GN35 M4*4.2 3.2 42 9.5 8 4.5 4.5 40 15 M4*10 690 940 20.32 5.78 5.78 143 2.86
MGW 15H - - - - - - 35 57 73.8 - - - - - - - - - - - - 910 1410 30.48 12.5 12.5 215 -
>>
<<
